Motorhome Chassis: Types, Components & Choice

Going on a journey in a motorhome offers a unique blend of comfort and adventure.

Central to a motorhome’s performance, safety, and overall travel experience is its chassis.

In this guide we will take you through the world of motorhome chassis, providing you with essential knowledge to enhance your mobile living experience.

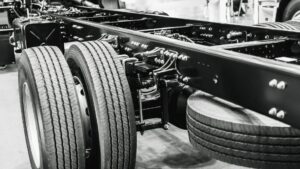

What Is a Motorhome Chassis?

Motorhome chassis is a robust framework designed to support not only the motorhome’s weight but also its occupants and their belongings. Think of it as the skeleton of the motorhome, upon which everything else is built.

It’s engineered to accommodate the unique layout and ergonomics of living spaces on wheels, ensuring that your home on the road is both safe and comfortable.

How Are Motorhomes Constructed on Different Chassis?

Constructing a motorhome on a chassis is a process that motorhome manufacturers undertake with precision. This construction begins with the selection of a base chassis, which will influence the layout, driving experience, and performance level of the finished motorhome.

The process involves installing the living quarters, which includes everything from the sleeping and living areas to the kitchen and bathroom.

Manufacturers consider factors such as space optimization, ergonomics, and the overall travel experience. The construction process is a delicate balance between creating a comfortable living space and maintaining the vehicle’s performance and safety on the road.

Air suspension systems, robust engines, and manual or automatic transmissions are chosen based on the specific needs of the motorhome layout and expected travel conditions.

In constructing these mobile homes, manufacturers also focus on incorporating elements that enhance the travel experience. Features like swivel seats, expansive windows, and versatile storage solutions transform the motorhome into a comfortable and functional living space.

Materials used in construction, from the chassis to the roof and interior panels, are selected for their quality, durability, and ability to withstand the rigors of the road.

What are the Main Components of a Motorhome Chassis?

Although the frame is the most important component there are others that also have an important role in crafting a quality motorhome chassis. Here’s a detailed look at its main components:

• Frame: The frame is the structural backbone of the chassis, providing the necessary support for all other components and the motorhome’s living quarters. It’s designed to withstand the rigors of the road, ensuring durability and safety.
• Engine: The heart of the vehicle, a motorhome engine provides the power needed to take you from one adventure to another. Whether it’s a Fiat Ducato or Ford Transit, the engine’s performance level directly impacts your driving experience.
• Transmission: This component manages the power generated by the engine, ensuring smooth acceleration and efficient power distribution to the wheels. The choice between manual transmission and automatic (or a torque converter) can affect the motorhome’s handling and fuel efficiency.
• Suspension System: The suspension system absorbs shocks from uneven roads, providing a smoother ride. Air suspension variants offer an enhanced level of comfort and stability, especially in larger motorhomes.
• Axles: Axles bear the weight of the motorhome and facilitate movement by transmitting driving torque to the wheels. The design and strength of the axles are crucial for the vehicle’s load-carrying capacity and stability.
• Brakes: Essential for safety, the braking system allows you to control the speed and make safe stops. The system’s reliability is paramount in preventing accidents and ensuring the well-being of travelers.
• Wheels and Tires: These components are the motorhome’s only contact with the road. Their size, pressure, and tread design influence traction, handling, and fuel efficiency.
• Fuel System: This includes the fuel tank and the fuel delivery system, which supplies fuel to the engine. The capacity of the fuel system determines the range of the motorhome before needing a refill.
• Electrical System: Powers the motorhome’s lighting, ignition, and electronic devices. It’s essential for both the functionality of the vehicle and the comfort of its occupants.
• Cooling System: Prevents the engine from overheating, ensuring it operates within the optimal temperature range. This is crucial for maintaining performance and extending the engine’s lifespan.
• Steering System: Enables the driver to guide and control the direction of the motorhome. The steering system’s design affects the vehicle’s responsiveness and handling.
• Exhaust System: Channels combustion gases away from the engine, reducing emissions and noise. A well-designed exhaust system is important for environmental compliance and performance.
• Storage Compartments: Integrated into the chassis, these compartments provide additional space for luggage and equipment, maximizing the living area inside the motorhome.
• Leveling System: This system, often found in high-end motorhomes, allows for adjustment of the vehicle’s stance to ensure it is level when parked. It enhances comfort and functionality in the living quarters.

What Materials are Motorhome Chassis Made of?

The choice of material for a motorhome chassis is critical, impacting everything from the vehicle’s weight and durability to its handling and fuel efficiency.

Here are the primary materials used:

• Steel: Known for its strength and durability, steel is a common choice for motorhome chassis. It provides a robust framework capable of supporting the weight of the motorhome and its contents. However, it’s heavier than other materials, which can affect fuel efficiency.
• Aluminum: Offering a lighter alternative to steel, aluminum is favored for its combination of strength and lightweight properties. This material contributes to a motorhome’s improved fuel efficiency and easier handling.
• Composite Materials: These advanced materials are used to enhance specific aspects of the motorhome chassis, such as corrosion resistance and weight reduction. Composite materials can offer the best of both worlds, combining strength with a significant reduction in weight.

Each of these materials has its place in the construction of motorhome chassis, with manufacturers often choosing a combination to optimize performance, safety, and cost.

What Are the Different Types of Motorhome Chassis?

Motorhomes chassis, like the different motorhome classes, come in various shapes and sizes, each designed for a specific travel experience.

Class A Chassis

Class A motorhomes are built on the most robust chassis, designed to accommodate large, luxurious living spaces. These chassis typically feature:

• Base: Often custom-built or derived from commercial truck platforms.
• Engine Type: Powerful diesel or gasoline engines to handle the vehicle’s size and weight.
• Size: The largest in the motorhome family, offering expansive living areas.
• GVWR (Gross Vehicle Weight Rating): High, reflecting their large size and capacity.
• Towing Capacity: Substantial, allowing for the towing of cars or trailers.
• Features: Advanced braking systems, air suspension for comfort, and ample storage compartments.
• Usage: Ideal for long-term travel or full-time living on the road.

Class B Chassis (Camper Vans)

Class B motorhomes, or camper vans, are built on van chassis and offer a more compact and agile option:

• Base: Van platforms like the Fiat Ducato or Ford Transit.
• Engine Type: Efficient diesel or gasoline engines suitable for smaller vehicles.
• Size: Compact, facilitating easy maneuverability and parking.
• GVWR: Lower than Class A, appropriate for their size.
• Towing Capacity: Limited compared to larger motorhomes.
• Features: Front-wheel drive for better traction, swivel seats, and convertible living spaces.
• Usage: Best for short-term travel, weekend getaways, or for those who frequently move from place to place.

Class C Chassis

Class C motorhomes strike a balance between Class A and B, offering a mix of comfort and maneuverability:

• Base: Truck or van chassis with an attached cab section.
• Engine Type: Typically gasoline or diesel, providing a good balance of power and efficiency.
• Size: Medium, offering more living space than Class B but more manageable than Class A.
• GVWR: Moderately high, accommodating additional living amenities.
• Towing Capacity: Adequate for small trailers or vehicles.
• Features: Over-cab sleeping or storage areas, rear bedroom, and full-sized amenities.
• Usage: Suitable for families or those seeking a comfortable travel experience without the size of a Class A.

Super C Chassis

Super C motorhomes are built on heavy-duty truck chassis and offer enhanced towing capabilities and durability:

• Base: Commercial truck platforms, offering superior strength and stability.
• Engine Type: Powerful diesel engines capable of handling heavy loads.
• Size: Larger than standard Class C, with more luxurious amenities.
• GVWR: Very high, reflecting their robust construction.
• Towing Capacity: Exceptional, ideal for hauling heavy trailers or vehicles.
• Features: Spacious interiors, high-end finishes, and advanced driving aids.
• Usage: Perfect for those requiring extra power and space, often used for extended travel or full-time living.

Travel Trailer Chassis

The travel trailer chassis is designed to offer a balance between weight and structural integrity, ensuring that the vehicle remains towable by a range of tow vehicles.

• Base: Typically constructed from steel or aluminum for strength and lightness.
• Engine Type: N/A (towed by an external vehicle).
• Size: Varies widely to accommodate small to large trailers.
• GVWR (Gross Vehicle Weight Rating): Depending on the model, it can range from under 3,000 lbs to over 10,000 lbs.
• Towing Capacity: Determined by the towing vehicle.
• Features: Often includes leveling jacks, a hitch system, and sometimes slide-outs to increase living space.
• Usage: Ideal for travelers seeking a detachable living space that remains at the campsite when exploring the surrounding area.

Fifth Wheel Chassis

Fifth wheel chassis are known for their stability and spacious living areas, designed to be towed by pickup trucks with a special fifth wheel hitch.

• Base: Robust steel frames are common to support the weight and structure of the large living areas.
• Engine Type: N/A (towed by an external vehicle).
• Size: Larger than most travel trailers, providing more living space.
• GVWR: Can exceed 20,000 lbs for the largest models.
• Towing Capacity: Determined by the towing vehicle.
• Features: Includes a bi-level floor plan for additional space, and often luxury amenities.
• Usage: Suited for long-term travelers and full-timers looking for comfort and a high-quality travel experience.

Toy Hauler Chassis

Toy haulers are designed to transport motorbikes, ATVs, and other “toys”, combining living space with cargo utility.

• Base: Durable steel to support heavy loads.
• Engine Type: N/A (towed or motorized options available).
• Size: Varies to accommodate different cargo sizes.
• GVWR: Adjusted to handle additional weight from cargo.
• Towing Capacity: Depends on whether it’s towable or motorized.
• Features: Ramp doors, large cargo areas, and convertible living spaces.
• Usage: Perfect for adventure seekers who want to bring their equipment along.

Teardrop Trailer Chassis

Teardrop trailers are small, lightweight, and aerodynamically efficient, designed for ease of towing and minimalistic travel.

• Base: Lightweight steel or aluminum frames.
• Engine Type: N/A (towed by an external vehicle).
• Size: Compact, ideal for one or two travelers.
• GVWR: Typically under 4,000 lbs.
• Towing Capacity: Low, making them suitable for cars and small SUVs.
• Features: Basic amenities including a sleeping area and kitchenette, usually in the rear.
• Usage: Best for weekend warriors and short-term camping trips.

Pop-Up Camper Chassis

Pop-up campers offer a unique blend of compact towing and spacious living space, thanks to their collapsible roofs.

• Base: Lightweight materials like aluminum for the frame.
• Engine Type: N/A (towed by an external vehicle).
• Size: Compact when collapsed, expanding to offer more space.
• GVWR: Generally lightweight, around 2,500 to 4,000 lbs.
• Towing Capacity: Low, compatible with many vehicles.
• Features: Collapsible sections, canvas sides, and basic living amenities.
• Usage: Suitable for families looking for a step up from tent camping without the investment in a full-sized RV.

Bus Conversion Chassis

Bus conversions are the epitome of customization, turning commercial buses into luxurious motorhomes.

• Base: Commercial bus chassis, known for durability and strength.
• Engine Type: Large diesel engines designed for heavy-duty use.
• Size: Large, providing ample space for luxurious amenities.
• GVWR: High, as they are built to commercial specifications.
• Towing Capacity: High, capable of towing vehicles or trailers.
• Features: Customizable to owner specifications, often including high-end finishes.
• Usage: Ideal for those seeking a custom or luxury motorhome experience.

What is AL-KO Chassis?

The AL-KO chassis is renowned for its lightweight construction and stability, enhancing the safety and comfort of motorhomes and caravans. It is particularly praised for its superior suspension systems, which provide a smoother ride and better handling.

What is the Best Type of Chassis?

The best type of chassis depends on individual needs and preferences. For unparalleled luxury and customization, bus conversions on a durable commercial chassis may be ideal. Those seeking adventure with their motorized “toys” might find the versatility of a toy hauler chassis unmatched. Ultimately, the choice should align with your travel style, budget, and the type of experiences you wish to pursue on the road.

How Do Motorhome Chassis Differ from Towable RV Chassis?

While both motorhome and towable RV chassis serve this primary function, they differ significantly in design, functionality, and intended use.

• Integration vs. Separation: Motorhome chassis combine driving and living spaces, whereas towable RV chassis are designed solely for living quarters, requiring a separate vehicle for towing.
• Drive Configuration: Motorhomes offer various drive configurations, including the popular front-wheel drive for space efficiency. Towables are designed to be stable and secure behind a tow vehicle, with considerations for weight distribution and sway control.
• Engine and Gearbox: Present only in motorhome chassis, the choice of engine and gearbox type—such as the torque converter in automatic transmissions or manual options—significantly impacts the driving experience and performance.
• Suspension and Handling: Motorhome chassis often feature advanced suspension systems, like air suspension for a smoother ride and better handling, a critical consideration for the integrated vehicle’s overall driveability.
• Manufacturing and Customization: Chassis for motorhomes are often produced by specialized manufacturers in collaboration with RV makers, ensuring optimal integration of vehicle and living spaces. Towable chassis allow for a broader range of customization in the living quarters since they are not constrained by the need to incorporate driving mechanisms.

What Are Common Challenges and Solutions in Motorhome Chassis?

Motorhome chassis are built to endure the rigors of the road, but they are not without their vulnerabilities. Common challenges include:

• Corrosion and Rust: Often caused by exposure to moisture and road salt, corrosion can weaken the chassis structure. Regularly inspect the chassis for signs of rust or corrosion. Applying a protective coating can prevent further damage.
• Wear and Tear on Suspension Components: The suspension system, critical for smooth travel, can wear down over time. Schedule regular inspections and replace worn components, such as air suspension bags, to maintain ride quality and safety.
• Tire Deterioration: Tires face constant wear and are susceptible to aging, even when a motorhome is not in use. Regularly check tire pressure and tread depth. Replace tires based on age or wear rather than solely on mileage.
• Brake System Wear: The braking system is paramount to safety but can deteriorate with use. Perform regular brake inspections and fluid changes. Pay attention to any changes in braking performance.
• Electrical System Issues: Wiring and connections can become damaged or corroded, affecting vehicle lights and other electrical components. Regular electrical system checks can prevent failures. Clean and protect connections to avoid corrosion.
• Engine and Transmission Problems: These critical components require regular service to prevent breakdowns. Adhere to the manufacturer’s service intervals. Use diagnostic tools to catch issues early.

How Can You Properly Maintain Your Motorhome Chassis?

Proper maintenance is the key to extending the life of your motorhome chassis and ensuring your travels are safe and enjoyable. Here are some tips:

• Regular Inspections: Conduct thorough inspections of the chassis at least twice a year. Look for signs of wear, corrosion, or damage.
• Keep It Clean: Regular washing can remove harmful substances like road salt, reducing the risk of corrosion. Pay special attention to the undercarriage.
• Lubrication: Ensure all moving parts, especially in the suspension and steering systems, are well-lubricated to prevent wear.
• Tire Maintenance: Keep tires inflated to the recommended pressure to avoid uneven wear and extend their life. Store your motorhome away from direct sunlight if possible, to slow tire aging.
• Brake Care: Check brake pads, discs, and fluid levels regularly. Any sign of deterioration should prompt a visit to a specialist.
• Electrical System Checks: Inspect wiring and electrical connections for signs of wear or damage. Clean and protect battery terminals and connections.
• Engine and Transmission Care: Regular service, including oil and filter changes, will keep the engine and transmission running smoothly. Use this opportunity to check for any leaks or unusual noises.
• Use Quality Parts: When replacements are necessary, opt for high-quality parts that match or exceed the manufacturer’s specifications.

Regular care not only ensures your motorhome remains a reliable companion on your adventures but also helps retain its value over time.

Remember, preventive motorhome maintenance is always more cost-effective than dealing with major repairs. So, take the time to care for your motorhome chassis, and it will serve you well on the many roads to come.

How to Choose the Best Motorhome Chassis for Your Needs?

The quest for the perfect motorhome chassis involves several considerations, each tailored to your unique travel preferences, lifestyle, and expectations.

1. Determine Your Motorhome Type Preference

Start by deciding the type of motorhome you prefer. Each type, from Class A to C, offers different living spaces, amenities, and driving experiences. The chassis underpins these differences, affecting everything from living space ergonomics to on-road performance.

2. Consider Your Travel Needs

Your travel destinations, frequency, and style play a significant role in selecting a chassis. For extensive, long-term travels across varied terrains, a chassis with a high performance level and durability, like the AL-KO for its air suspension and stability, may be ideal.

3. Evaluate the Engine and Gearbox Type

The engine determines the motorhome’s power, fuel efficiency, and ability to navigate different landscapes, while the gearbox affects the driving experience and vehicle control. Whether it’s a torque converter or manual transmission, the choice impacts your journey’s smoothness and responsiveness.

4. Assess Chassis Manufacturer

Consider the reputation and reliability of the chassis manufacturer. Well-known brands like Fiat Ducato and Ford Transit are celebrated for their build quality, safety features, and service network across the US and Europe, ensuring peace of mind during travels.

5. Understand Weight and Size Specifications

The chassis weight and size directly influence the motorhome’s living space, storage capacity, and maneuverability. Ensure the chassis can support your desired payload without compromising on performance or safety.

6. Check the Towing Capacity

Larger chassis typically offer higher towing capacities, allowing you to bring along vehicles or trailers. However, it’s essential to balance this with how size impacts driveability, especially in narrow or crowded spaces.

7. Consider the Suspension System

The suspension system affects ride comfort and handling. Options like air suspension, offered by manufacturers like AL-KO, enhance comfort and stability, particularly in larger motorhomes.

8. Review Safety Features

Safety features, including advanced braking systems, stability control, and driver assistance technologies, are crucial. Ensure the chassis supports these features to protect you on your journeys.

9. Personal Comfort and Driveability

Test driving different chassis can offer insights into their handling, comfort, and suitability for your driving style. Consider aspects like visibility, ease of parking, and how the vehicle feels on the road.

10. Budget Considerations

Finally, align your chassis choice with your budget, considering not only the initial purchase price but also long-term costs like maintenance, repairs, and fuel efficiency.

Conclusion

Whether you’re drawn to the all-in-one convenience of a motorhome or the flexibility of a towable RV, the chassis plays a crucial role in defining your travel experience. Considerations such as the type of travel you prefer, the level of comfort and performance you expect, and the balance between living space and driveability will guide your choice.
